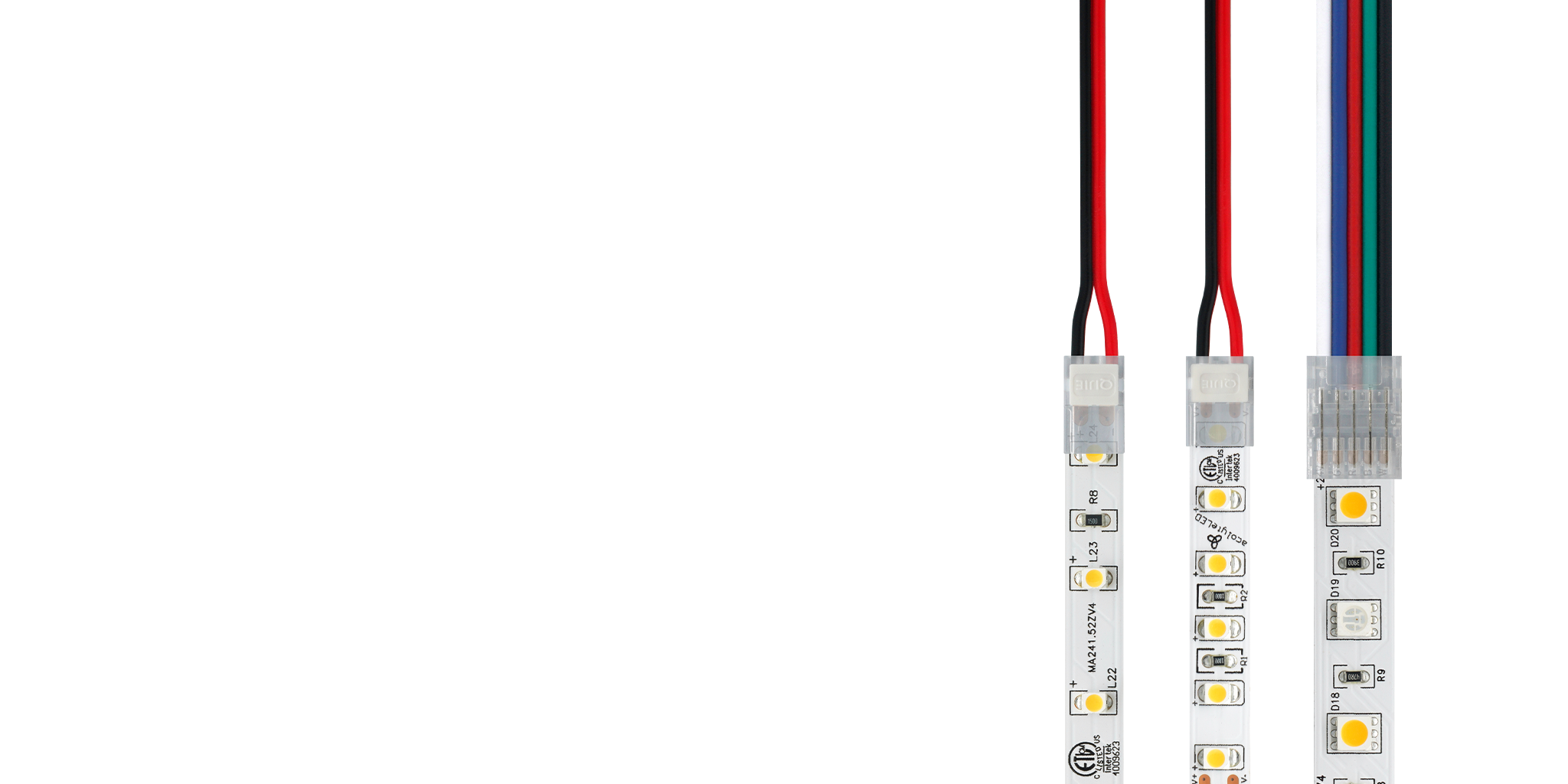

Solderless connectors can be used to join 2-conductor wire with Rapid Ribbon 95+ by Acolyte or to join 5-conductor wire with Rapid Ribbon RGBW. There are three types; one to connect 2-conductor wire to either 1.5 or 3.0 Rapid Ribbon 95+, one to connect 2-conductor wire to 5.0 Rapid Ribbon 95+, and one to connect 5-conductor wire to Rapid Ribbon RGBW. All Rapid Ribbon solderless connectors are IP20.
Features
Dimensions (L x W x H):
8 mm connector for 1.5 & 3.0 Rapid Ribbon 95+
0.61 x 0.37 x 0.17 in. (15.4 x 9.5 x 4.3 mm)
10 mm connector for 5.0 Rapid Ribbon 95+
0.61 x 0.45 x 0.17 in. (15.4 x 11.5 x 4.3 mm)
12 mm connector for Rapid Ribbon RGBW
0.75 x 0.58 x 0.25 in. (19.1 x 14.7 x 6.4 mm)
IP20
