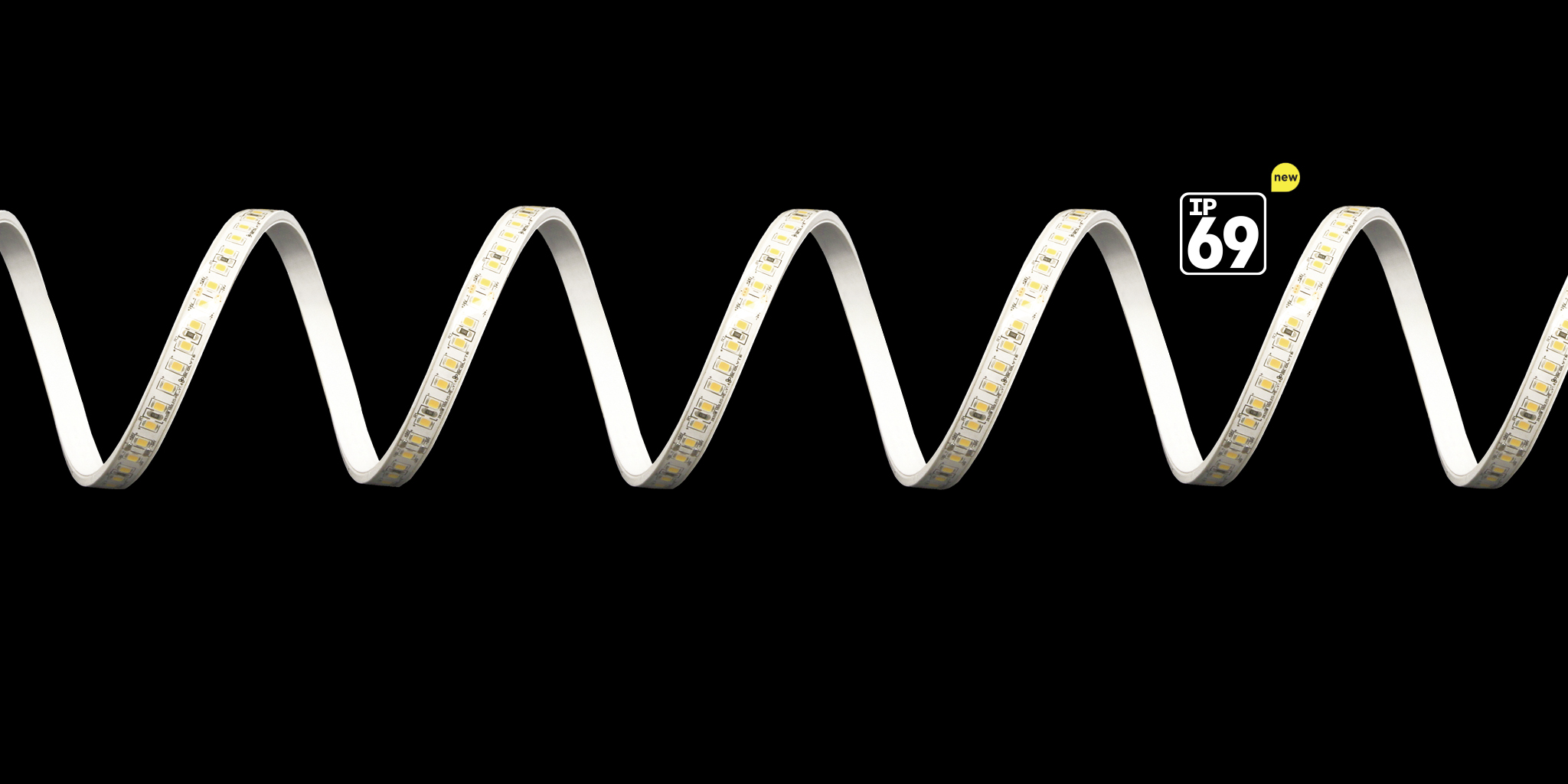

RibbonLyte (LED tape)

More than 25,000 variations of our proprietary RibbonLyte ensure you can create truly customized fixtures. Superior in-house engineering and strict quality control in our production facilities guarantee consistent CCTs and unmatched color accuracy across our RibbonLyte product lines. From high-CRI Static White to the stunning soft fade of Warm Dim, from our bendable Matrix to our fully Addressable RGBW, we truly offer lighting without limits. With varied power options, lumen outputs and ingress protections, there’s sure to be a RibbonLyte solution to fit your specific needs.

Filters

3 beam angles:
Symmetric 10° and 30°
or Asymmetric 45°

14 LEDs/ft (46 LEDs/m)
Min. bending diameter:
11.8 in. (300 mm)
4 Static White CCTs (2700K-4000K)
3-year warranty

IP67

Specification Sheet

OptX RibbonLyte

Programmable RGB pixels
0.66 in. (16.66 mm) spacing
18 LEDs/ft (60 LEDs/m)
All on: 137 lm/ft (450 lm/m)

3.94 in. (100 mm) cuttable length
24ft, 7.27 in. (7.5 m) max. run length
Use with SPI controls
IP20

Specification Sheet

Pixel RibbonLyte

Programmable pixels
3.94 in. (100 mm) spacing
6 W/ft (19.7 W/m)
18 LEDs/ft (60 LEDs/m)
All on: Up to 42 lm/W
All on: Up to 251. 22 lm/ft (824 lm/m)
Cut every 3.94 in. (100 mm)
Max. run length:
16 ft 5.64 in. (5.02 m)

Specification Sheet

RGBW Addressable

5-in-1 RGB + Warm White
+ Cool White

Adjust warmth & brightness
4.4 W/ft (14.4 W/m)
All on: 58 lm/W
All on: 255.12 lm/ft (836.79 lm/m)
29 LEDs per foot (96 LEDs/m)
Cut lengths of 2.46 in. (62.5 mm)
IP20
TM66 assessed

Specification Sheet

4.4 RGBWW 5-in-1

5-in-1 RGB + Warm White
+ Cool White

Adjust warmth & brightness
8.8 W/ft (28.9 W/m)
All on: 53 lm/W
All on: 464.63 lm/ft (1523.99 lm/m)
29 LEDs per foot (96 LEDs/m)
Cut lengths of 2.46 in. (62.5 mm)
IP20
TM66 assessed (see downloads for more info)

Specification Sheet

8.8 RGBWW 5-in-1

RGBW in 2700K, 3000K, 4000K
4.4 W/ft (14.4 W/m)
36 LEDs/ft (120 LED/m)
All on: Up to 72 lm/W
All on: Up to 318.78 lm/ft
(
1045.6 lm/m)

0.47 in. (12 mm) width
1.97 in. (50 mm) cut lengths
IP20
TM66 assessed

Specification Sheet

4.4 RGBW Series 2

4.4 W/ft (14.4 W/m)
36 LEDs/ft (120 LEDs/m)
All on: 48 lm/W
All on: 209.2 lm/ft
(686.18
lm/m)

0.47 in. (12 mm) wide
1.97 in. (50 mm) cut length
IP20
TM66 assessed

Specification Sheet

4.4 RGBA Series 2

RGBW in 2700K, 3000K, 4000K
5.5 W/ft (18 W/m)
36 LEDs/ft (120 LED/m)
All on: Up to 83 lm/W
All on: Up to 453.78 lm/ft
(1488.4
lm/m)

IP 65: 0.47 in. (12 mm) wide
IP68: 0.58 in. (14.8 mm) wide
1.97 in. (50 mm) cut lengths
TM66 assessed

Specification Sheet

5.5 RGBW Series 2

5.5 W/ft (18 W/m)
36 LEDs/ft (120 LEDs/m)
All on: 51 lm/W
All on: 280.67 lm/ft (920.6 lm/m)
IP65: 0.47 in. (12 mm) wide
IP68: 0.58 in. (14.8 mm)
1.97 in. (50 mm) cut lengths
TM66 assessed

Specification Sheet

5.5 RGBA Series 2

RGBW in 2700K, 3000K, 4000K
8.8 W/ft (28.9 W/m)
36 LEDs/ft (120 LED/m)
All on: Up to 76 lm/W
All on: Up to 664.81 lm/ft
(2180.58
lm/m)

0.47 in. (12 mm) wide
1.97 in. (50 mm) cut lengths
IP20
TM66 assessed

Specification Sheet

8.8 RGBW Series 2

8.8 W/ft (28.9 W/m)
36 LEDs/ft (120 LEDs/m)
All on: 39 lm/W
All on: 343.84 lm/ft
(
1127.8 lm/m)

0.47 in. (12 mm) wide
1.97 in. (50 mm) cut lengths
IP20
TM66 assessed

Specification Sheet

8.8 RGBA Series 2

3.0 W/ft (9.8 W/m)
Width: 1.02 in. (26 mm)
RGBW with White LEDs
at 2700K, 3000K, 4000K
RGBA (uses Amber LEDs)
72 LEDs/ft (240 LEDs/m)
1.3 in. (33 mm) cut lengths
IP20 for interior use
TM66 assessed

Specification Sheet

3.0 RGBW/A Double Row RibbonLyte

6.0 W/ft (19.7 W/m)
Width: 1.02 in. (26 mm)
RGBW with White LEDs
at 2700K, 3000K, 4000K
RGBA (uses Amber LEDs)
72 LEDs/ft (240 LEDs/m)
1.3 in. (33 mm) cut lengths
IP20 for interior use
TM66 assessed

Specification Sheet

6.0 RGBW/A Double Row RibbonLyte

12.0 W/ft (39.4 W/m)
Width: 1.02 in. (26 mm)
RGBW with White LEDs
at 2700K, 3000K, 4000K
RGBA (uses Amber LEDs)
72 LEDs/ft (240 LEDs/m)
1.3 in. (33 mm) cut lengths
IP20 for interior use
TM66 assessed

Specification Sheet

12.0 RGBW/A Double Row RibbonLyte

3.0 W/ft (9.8 W/m)
Width: 0.94 in. (24 mm)
9 Static White CCTs:
(1800K-6000K)
356.6 lm/ft (1170.1 lm/m) @ 3500K
136 LEDs/ft (448 LEDs/m)
0.7 in. (17.9 mm) cut lengths
IP20 for interior use
in large channels
TM66 assessed

Specification Sheet

3.0 Static White Double Row RibbonLyte

6.0 W/ft (19.7 W/m)
Width: 0.94 in. (24 mm)
9 Static White CCTs:
(1800K-6000K)
713.3 lm/ft (2340.3 lm/m) @ 3500K
136 LEDs/ft (448 LEDs/m)
0.7 in. (17.9 mm) cut lengths
IP20 for interior use
in large channels
TM66 assessed

Specification Sheet

6.0 Static White Double Row RibbonLyte

12.0 W/ft (39.4 W/m)
Width: 0.94 in. (24 mm)
9 Static White CCTs:
(1800K-6000K)
1354 lm/ft (4442.6 lm/m) @ 3500K
136 LEDs/ft (448 LEDs/m)
0.7 in. (17.9 mm) cut lengths
IP20 for interior use
in large channels
TM66 assessed

Specification Sheet

12.0 Static White Double Row RibbonLyte

3.0 W/ft (9.8 W/m)
Width: 0.87 in. (22 mm)
Variable White (2000K-6500K)
All on: 116 lm/W
All on: 349.1 lm/ft (1145.05 lm/m)
1.97 in. (50 mm) cut lengths
IP20 for interior use
TM66 assessed

Specification Sheet

3.0 Variable White Double Row RibbonLyte

6.0 W/ft (19.7 W/m)
Width: 0.87 in. (22 mm)
Variable White (2000K-6500K)
84 LEDs/ft (280 LEDs/m)
All on: 42 lm/W
All on: 250.2 lm/ft (820.66 lm/m)
1.97 in. (50 mm) cut lengths
IP20 for interior use
TM66 assessed

Specification Sheet

6.0 Variable White Double Row RibbonLyte

12.0 W/ft (39.4 W/m)
Width: 0.87 in. (22 mm)
Variable White (2000K-6500K)
84 LEDs/ft (280 LEDs/m)
All on: 63 lm/W
All on: 754.9 lm/ft (2476.07 lm/m)
1.97 in. (50 mm) cut lengths
IP20 for interior use
TM66 assessed

Specification Sheet

12.0 Variable White Double Row RibbonLyte

Diode-free without a fixtur
6.1 W/ft (20 W/m)
Tunable from 2700-6500K
All on: 72 lm/W
All on: 439.02 lm/ft (1439.99 lm/m)
1.09 in. (27.78 mm) cut lengths

180° beam angle
80+ CRI
TM66 assessed

Specification Sheet

Variable White Linea RibbonLyte

Diode-free without a fixture
2.4 W/ft (8 W/m)
2700K, 3000K, 3500K, 4000K

1.97 in. (50 mm) cut length
180° beam angle
90+ CRI
TM66 assessed

Specification Sheet

2.4 Static White Linea RibbonLyte

Diode-free without a fixture
3.0 W/ft (10 W/m)
2700K, 3000K, 3500K, 4000K

1.97 in. (50 mm) cut length
180° beam angle
90+ CRI
TM66 assessed

Specification Sheet

3.0 Static White Linea RibbonLyte

Diode-free without a fixture
4.3 W/ft (14 W/m)
2700K, 3000K, 3500K, 4000K
1.97 in. (50 mm) cut length
180° beam angle
90+ CRI
TM66 assessed

Specification Sheet

4.3 Static White Linea RibbonLyte

0.75 W/ft (2.5 W/m)
84-134 lm/W
101 lm/ft at 4000K
1800K-6000K
49 LEDs/ft (160 LEDs/m)
Cut every 1.97 in. (50 mm)
Max run length IP20: 49 ft. (15 m)
Max run length IP65, IP68:
32 ft. 8 in. (10 m)
Title 24, JA8 (2200K-4000K)

Specification Sheet

0.75 Static White Series 2

1.5 W/ft (4.9 W/m)
84-134 lm/W
201 lm/ft @4000K
1800K-6000K
49 LEDs/ft (160 LEDs/m)
Cut every 1.97 in. (50 mm)
Max run length IP20: 49 ft. (15 m)
Max run length IP65, IP68:
32 ft. 8 in. (10 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

1.5 Static White Series 2

2.2 W/ft (7.2 W/m)
83-133 lm/W
293 lm/ft @4000K
1800K-6000K
49 LEDs/ft (160 LEDs/m)
Cut every 1.97 in. (50 mm)
Max. run length IP20: 42 ft. (12.8 m)
Max. run length IP65, IP68:
32 ft. 8 in. (10 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

2.2 Static White Series 2

3.0 W/ft (9.8 W/m)
84-137 lm/W
411 lm/ft at 3500K
1800K-6000K
49 LEDs/ft (160 LEDs/m)
Cut every 1.97 in. (50 mm)
Max. run length IP20: 36 ft. (11 m)
Max. run length IP65/IP68:
32 ft. 8 in. (10 m)
Title 24, JA8
TM66 assessed

Specification Sheet

3.0 Static White Series 2

4.4 W/ft (14.4 W/m)
81-133 lm/W
585 lm/ft @3500K
1800K-6000K
49 LEDs/ft (160 LEDs/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. 4 in. (8.64 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

4.4 Static White Series 2

5.0 W/ft (16.4 W/m)
83-135 lm/W
675 lm/ft @3500K
1800K-6000K
68 LEDs/ft (224 LEDs/m)
Cut every 1.41 in. (35.7 mm)
Max. run length IP20:
33 ft. 4 in. (10.1 m)
Max. run length IP65, IP68:
32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

5.0 Static White Series 2

6.0 W/ft (19.7 W/m)
82-132 lm/W
792 lm/ft @3500K
1800K-6000K
68 LEDs/ft (224 LEDs/m)
Cut every 1.41 in. (35.7 mm)
Max. run length: 28 ft. (8.5 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

6.0 Static White Series 2

1.0 W/ft (3.3 W/m)
76-118 lm/W
118 lm/ft @4000K
1800K-6000K
43 LEDs/ft (140 LEDs/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. (8.5 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

1.0 Static White Micro

3.0 W/ft (9.8 W/m)
73-114 lm/W
342 lm/ft @4000K
1800K-6000K
43 LEDs/ft (140 LEDs/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. (8.5 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

3.0 Static White Micro

4.5 W/ft (15 W/m)
71-111 lm/W
500 lm/ft @4000K
1800K-6000K
43 LEDs/ft (140 LEDs/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. (8.5 m)
Title 24, JA8 (2200K-4000K)
TM66 assessed

Specification Sheet

4.5 Static White Micro

0.75 W/ft (2.46 W/m)
49 LEDs/ft (160 LEDs/m)
Red: 31 lm/ft (102 lm/m)
Amber: 26 lm/ft (85 lm/m)
Green: 131 lm/ft (430 lm/m)
Blue: 14 lm/ft (46 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length IP20: 49 ft. (15 m)
Max. run length IP65, IP68:
32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

0.75 Static Color Series 2

1.5 W/ft (4.9 W/m)
49 LEDs/ft (160 LEDs/m)
Red: 63 lm/ft (206.6 lm/m)
Amber: 51 lm/ft (167.3 lm/m)
Green: 240 lm/ft (787.2 lm/m)
Blue: 27 lm/ft (88.6 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length IP20: 49 ft. (15 m)
Max. run length IP65/IP68:
32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

1.5 Static Color Series 2

2.2 W/ft (7.2 W/m
49 LEDs/ft (160 LEDs/m)
Red: 92 lm/ft (301.8 lm/m)
Amber: 73 lm/ft (239.4 lm/m)
Green: 319 lm/ft (1046.3 lm/m)
Blue: 40 lm/ft (131.2 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length IP20: 42 ft. (12.8 m)
Max. run length IP65, IP68:
32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

2.2 Static Color Series 2

3.0 W/ft (9.8 W/m)
49 LEDs/ft (160 LEDs/m)
Red: 122 lm/ft (401 lm/m)
Amber: 87 lm/ft (284 lm/m)
Green: 400 lm/ft (1314 lm/m)
Blue: 76 lm/ft (250 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

3.0 Static Color Series 2

4.4 W/ft (14.4 W/m)
48 LEDs/ft (160 LEDs/m)
Red: 173 lm/ft (567 lm/m)
Amber: 110 lm/ft (361 lm/m)
Green: 535 lm/ft (1754 lm/m)
Blue: 112 lm/ft (369 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 29 ft. (8.8 m)
TM66 assessed

Specification Sheet

4.4 Static Color Series 2

5.0 W/ft (16.4 W/m)
68 LEDs/ft (224 LEDs/m)
Red: 187 lm/ft (612 lm/m)
Amber: 127 lm/ft (415 lm/m)
Green: 595 lm/ft (1952 lm/m)
Blue: 124 lm/ft (408 lm/m)
Cut every 1.41 in. (35.7 mm)
Max. run length: 30 ft. (9.14 m)
TM66 assessed

Specification Sheet

5.0 Static Color Series 2

6.0 W/ft (19.7 W/m)
68 LEDs/ft (224 LEDs/m)
Red: 216 lm/ft (708 lm/m)
Amber: 149 lm/ft (488 lm/m)
Green: 651 lm/ft (2137 lm/m)
Blue: 142 lm/ft (465 lm/m)
Cut every 1.41 in. (35.7 mm)
Max. run length: 28 ft. (8.5 m)
TM66 assessed

Specification Sheet

6.0 Static Color Series 2

1.0 W/ft (3.3 W/m)
43 LEDs/ft (140 LEDs/m)
Red: 27 lm/ft (88 lm/m)
Amber: 19 lm/ft (61 lm/m)
Green: 78 lm/ft (256 lm/m)
Blue: 17 lm/ft (56 lm/m)
Violet: 1 lm/ft (3 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. (8.5 m)
TM66 assessed

Specification Sheet

1.0 Static Color Micro

3.0 W/ft (9.84 W/m)
43 LEDs/ft (140 LEDs/m)
Red: 80 lm/ft (262 lm/m)
Amber: 56 lm/ft (185 lm/m)
Green: 234 lm/ft (768 lm/m)
Blue: 51 lm/ft (166 lm/m)
Violet: 1.4 lm/ft (4.6 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. (8.5 m)
TM66 assessed

Specification Sheet

3.0 Static Color Micro

4.5 W/ft (14.8 W/m)
43 LEDs/ft (140 LEDs/m)
Red: 117 lm/ft (383 lm/m)
Amber: 82 lm/ft (269 lm/m)
Green: 387 lm/ft (1270 lm/m)
Blue: 84 lm/ft (275 lm/m)
Violet: 2.3 lm/ft (7.5 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 28 ft. (8.5 m)
TM66 assessed

Specification Sheet

4.5 Static Color Micro

1.0 W/ft (3.3 W/m)
2000K-6500K
42 LEDs/ft (140 LEDs/m)
All on: 77 lm/W
All on: 76.6 lm/ft (251.25 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

1.0 Variable White Series 2

3.0 W/ft (9.8 W/m)
2000K-6500K
42 LEDs/ft (140 LEDs/m)
All on: 73 lm/W
All on: 218.5 lm/ft (716.68 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 32 ft. 8 in. (10 m)
TM66 assessed

Specification Sheet

3.0 Variable White Series 2

6.0 W/ft (19.7 W/m)
2000K-6500K
42 LEDs/ft (140 LEDs/m)
All on: 73 lm/W
All on: 437.4 lm/ft (1434.67 lm/m)
Cut every 1.97 in. (50 mm)
Max. run length: 19 ft 8 in. (6 m)
TM66 assessed

Specification Sheet

6.0 Variable White Series 2

5.2 W/ft (17 W/m)
288 lm/ft (945 lm/m) at 100%
2900K/2000K
36 LEDs/ft (120 LEDs/m)
Cut every 3.94 in. (100 mm)
Max. run length: 16 ft. 4 in. (5 m)
TM66 assessed

Specification Sheet

Warm Dim

3.0 W/ft (9.8 W/m)
262 lm/ft (860 lm/m) at 3500K
15 LEDs/ft (50 LEDs/m)
Bends up to 90 degrees
Cut every 4.84 in. (123 mm)
Max. run length: 39 ft. 4 in. (12 m)
TM66 assessed

Specification Sheet

Static White Matrix

3.0 W/ft (9.8 W/m)
All on: 49 lm/W
15 LEDs/ft (50 LEDs/m)
All on: 149.79 lm/ft (484.75 lm/m)
Bends up to 90 degrees
Cut every 4.84 in. (123 mm)
Max. run length: 39 ft. 4 in. (12 m)
TM66 assessed

Specification Sheet

RGB Matrix

4 W/ft (13.1 W/m)
2400K-6000K
18 LEDs/ft (60 LEDs/m)
308.4 lm/ft (1012 lm/m)
75.6 lm/W at 4000K
Width: 0.62″ (16 mm)
Cut every 4″ (101.6 mm)
Max. run length: 164 ft. (50 m)

Specification Sheet

Static White Direct AC RibbonLyte

Directly input 220-240 VAC
14 W/m
18 LEDs/ft (60 LEDs/m)
7 CCTs (2400K-6000K)
Width: 0.62″ (16 mm)

Factory cut every 166 mm
Max run length: 50 m

90+ CRI

Specification Sheet

230V Static White Direct AC RibbonLyte

2.5 W/ft (8.2 W/m)
44 LEDs/ft (144 LEDs/m)
Red: 20 lm/ft (66 lm/m)
Green: 77 lm/ft (253 lm/m)
Blue: 21 lm/ft (65 lm/m)
Width: .62″ (16 mm)
Cut every 1 ft (304.8 mm)
Max. run length: 164 ft. (50 m)

Specification Sheet

Static Color Direct AC RibbonLyte

3.0 W/ft (9.8 W/m)
36 LEDs/ft (120 LEDs/m)
All on: 32 lm/W
All on: 95.6 lm/ft (313.57 lm/m)
Width: .73″ (18.5 mm)
Cut every 1 ft (304.8 mm)
Max. run length: 100 ft. (30.48 m)

Specification Sheet

RGB Direct AC RibbonLyte

Agent Finder
