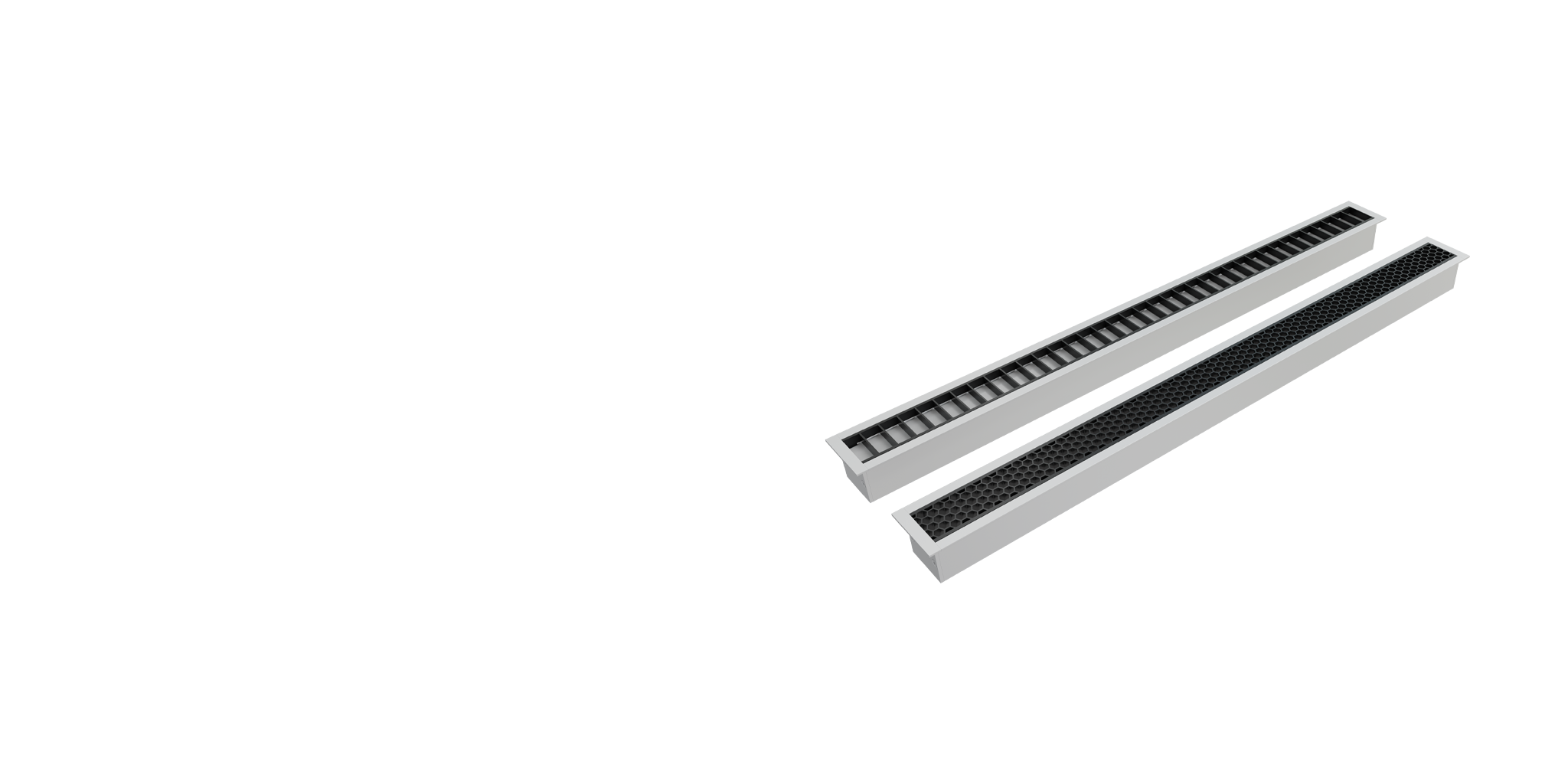

AR29L is a larger recessed aluminum channel extrusion with a milky lens or a 20° grazer lens. Choose a grille louver or honeycomb louver for extra glare control. Pair AR29L with our RibbonLyte to create complete custom fixtures.
Features
Large recessed profile
Sold by the foot. Factory or field cuttable to any length.
Choose from Milky lens or 20° grazer lens
Pair lens with Grille or Honeycomb louvers
UGR (Grille louver with Milky lens): <15.6
UGR (Honeycomb louver with Milky lens): <4.4
UGR (Grille louver with 20° lens): <17.5
UGR (Honeycomb louver with 20° lens): <5.6
Mount with Spring Clips
Width: 1.57 in. (40 mm)
Height: 1.15 in. (29.2 mm)
Internal Width: 0.48 in. (12.2 mm)
Interior / Exterior: Interior/Exterior
