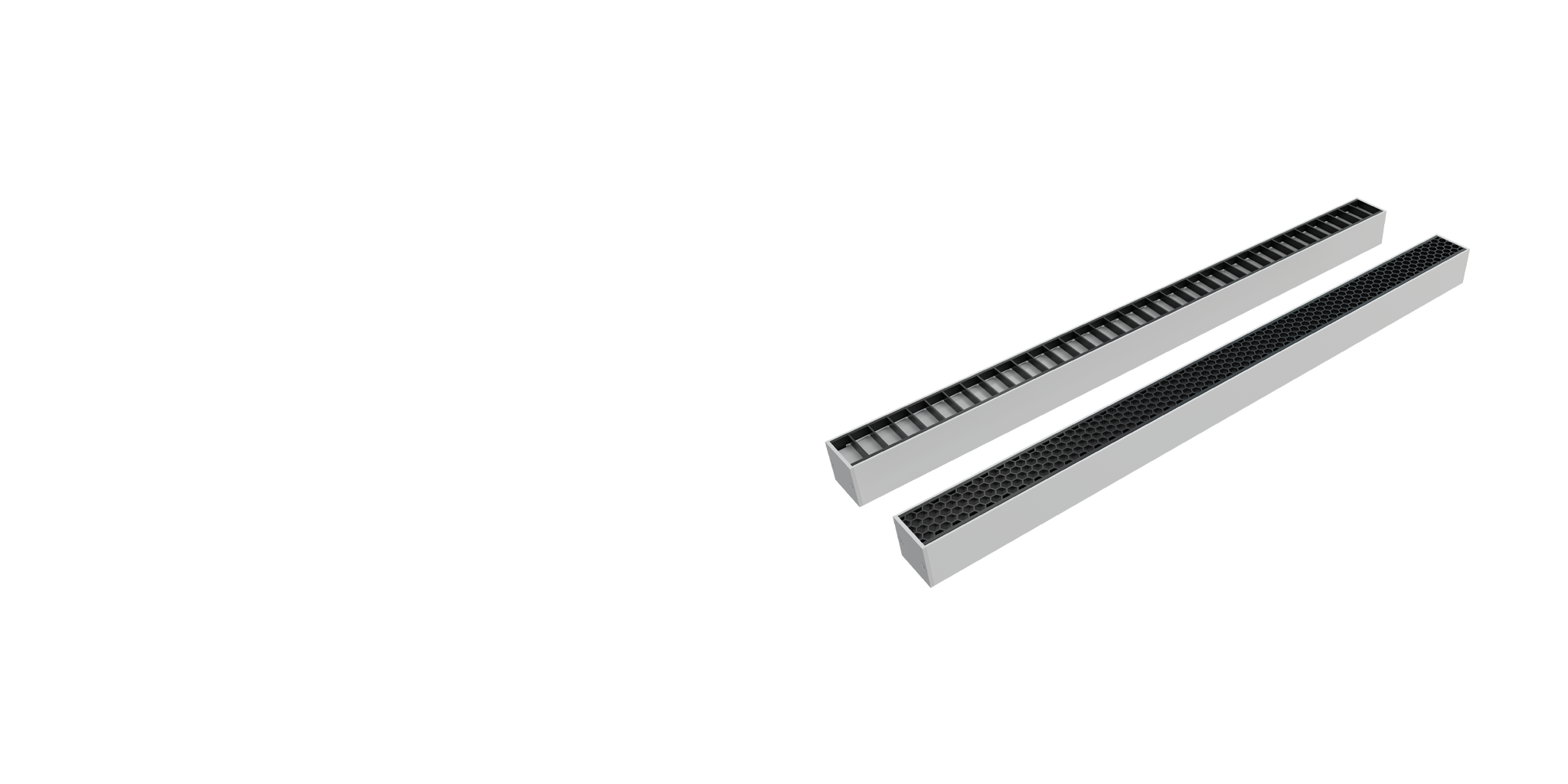

AS29L is a larger surface mounted aluminum channel extrusion with a milky lens or a 20° grazer lens and a choice of grille louver or honeycomb louver for glare control. Pair AS29L with our RibbonLyte to create complete custom fixtures.
Features
Large surface mounted profile
Sold by the foot. Factory or field cuttable to any length.
Choose from Milky lens or 20° grazer lens
Pair lens with Grille or Honeycomb louvers
UGR (Grille louver with Milky lens): <16.1
UGR (Honeycomb louver with Milky lens): <5.2
UGR (Grille louver with 20° lens): <18.7
UGR (Honeycomb louver with 20° lens): <6.5
Mount with Mounting Clips, Tiltable Stands or Magnetic Mounts
Width: 1.18 in. (30 mm)
Height: 1.15 in. (29.2 mm)
Internal Width: 0.48 in. (12.2 mm)
Interior / Exterior: Interior/Exterior
