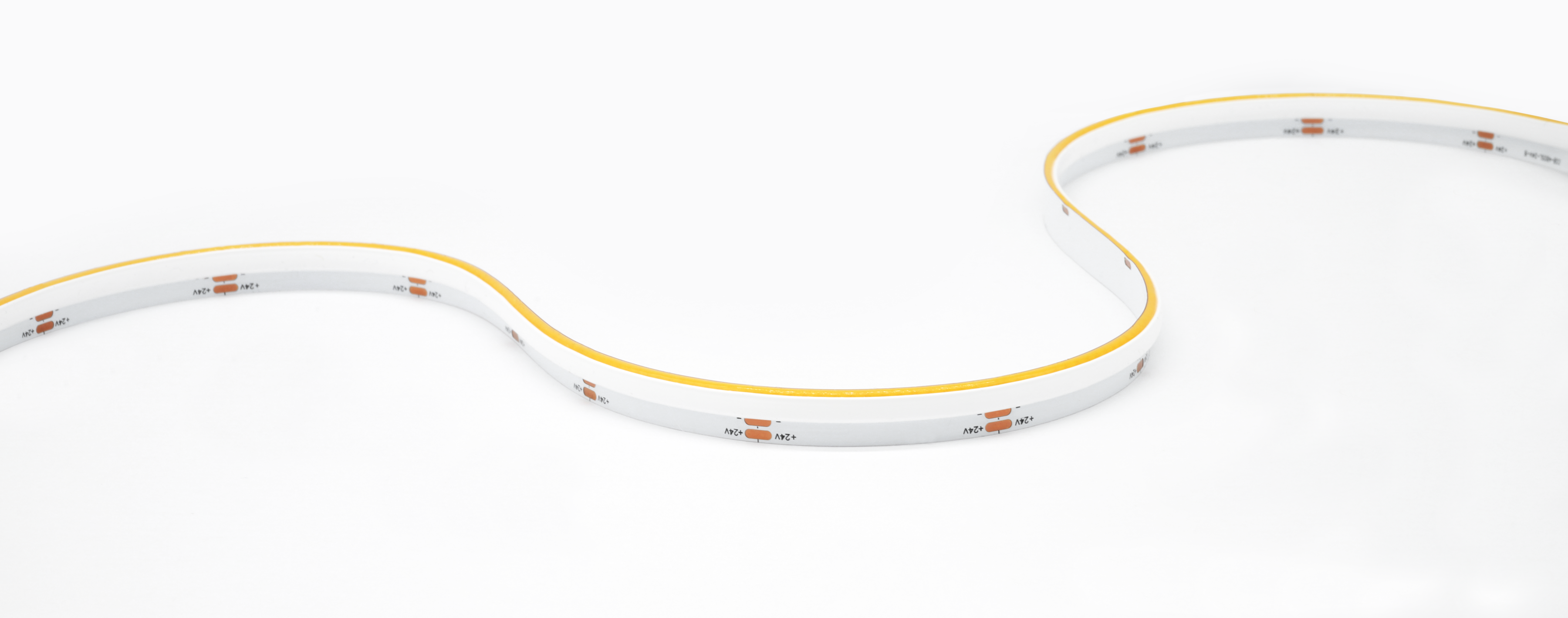

Static White Linea Edge RibbonLyte is a top-bending, side-illuminated LED ribbon that features a “chip on board” design and a special raised coating that delivers diode-free light even without a diffuser lens. A tight pitch of 12 LED chips per inch (480 LEDs/m) ensures that, even in direct view, high-CRI Static White Linea Edge RibbonLyte won’t show individual diodes in any of four dimmable CCTs (2700K, 3000K, 4000K, 6000K).
Features
Side (edge) illuminated
Diode-free without a fixture
2700K, 3000K, 4000K, 6000K
65 lm/W
189 lm/ft (620 lm/m)
1.31 in. (33.3 mm) cut lengths
45° beam angle
90+ CRI
IP20
TM66 assessed (see downloads for more info)
Voltage: 24V
Wattage: 3.0 W/ft (9.8 W/m)
