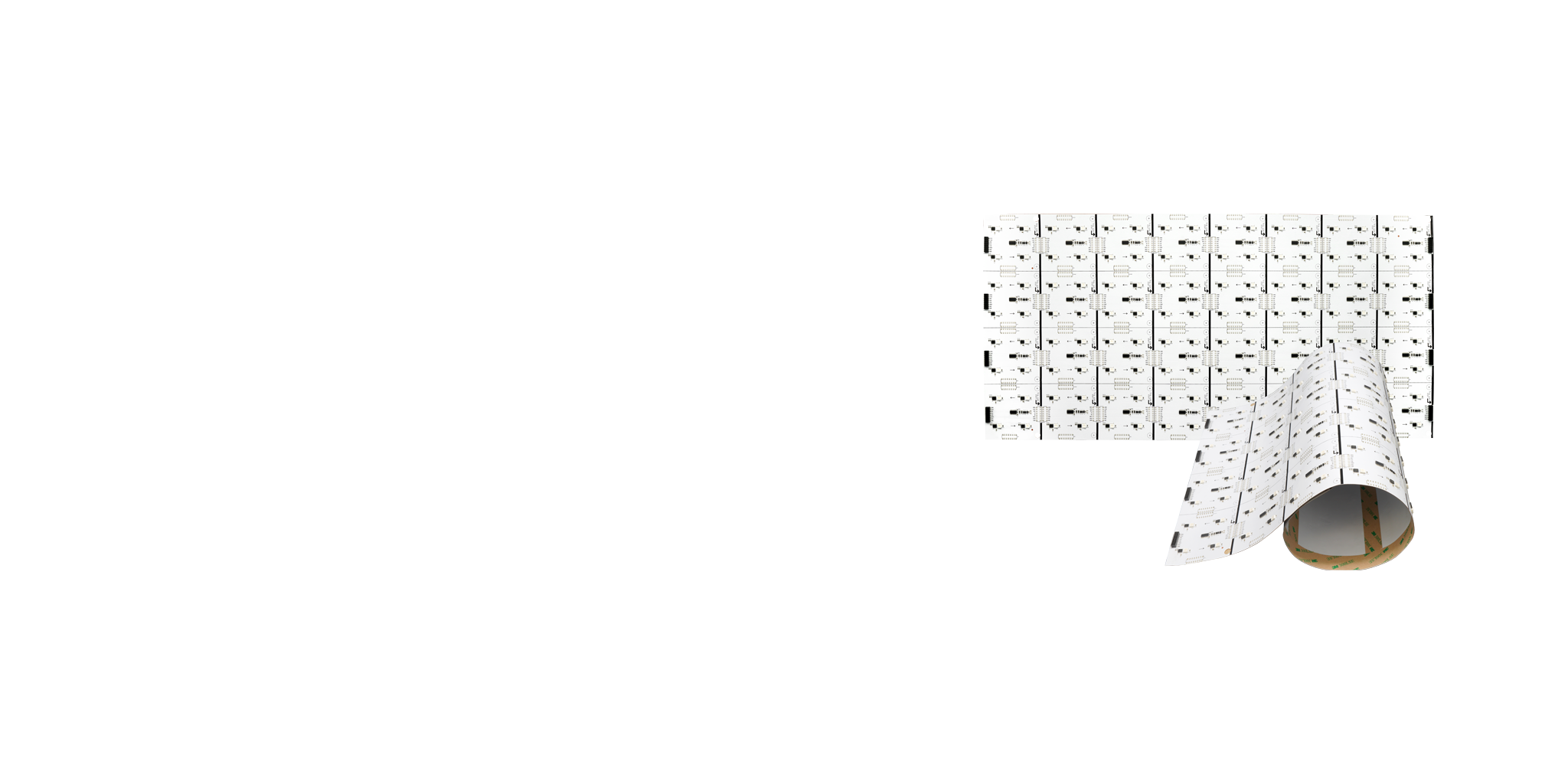

Pixel Flexible BackLyte lets you program and control individual color changing pixels for precision lighting effects. Pixel Flexible BackLyte is engineered to backlight translucent objects such as onyx, stone and resin panels – even in curved applications. 24V Pixel Flexible BackLyte offers amazing light consistency and clarity. Each nominal 1 x 2 ft (305 x 610 mm) rectangular panel features 32 cuttable 3 in. (76.2 mm) square sections that contain four programmable color changing LEDs. Bend, cut and connect our Pixel Flexible BackLytes to match the size and shape of your custom project.
Features
Bendable backlighting panel
Single programmable Pixels
32 cuttable 3 in. (76.2 mm) squares
128 RGB pixels per sheet spaced at 1.5 in. (38.1 mm)
43.5 W/sheet (21.75 W/sq ft, 234.12 W/sq m)
837.5 lm/sq ft (9014.77 lm/sq m), 38.5 lm/W (all on)
Uses SPI controls
4 in. (100 mm) min. bending radius (width)
4 in. (100 mm) min. bending radius (length)
24 VDC
Daisy chain up to 8 full sheets
Depth: 12.01 in. (305 mm)
Length: 24.02 in. (610 mm)
Rigid / Flexible: Flexible
IP Rating: IP20
