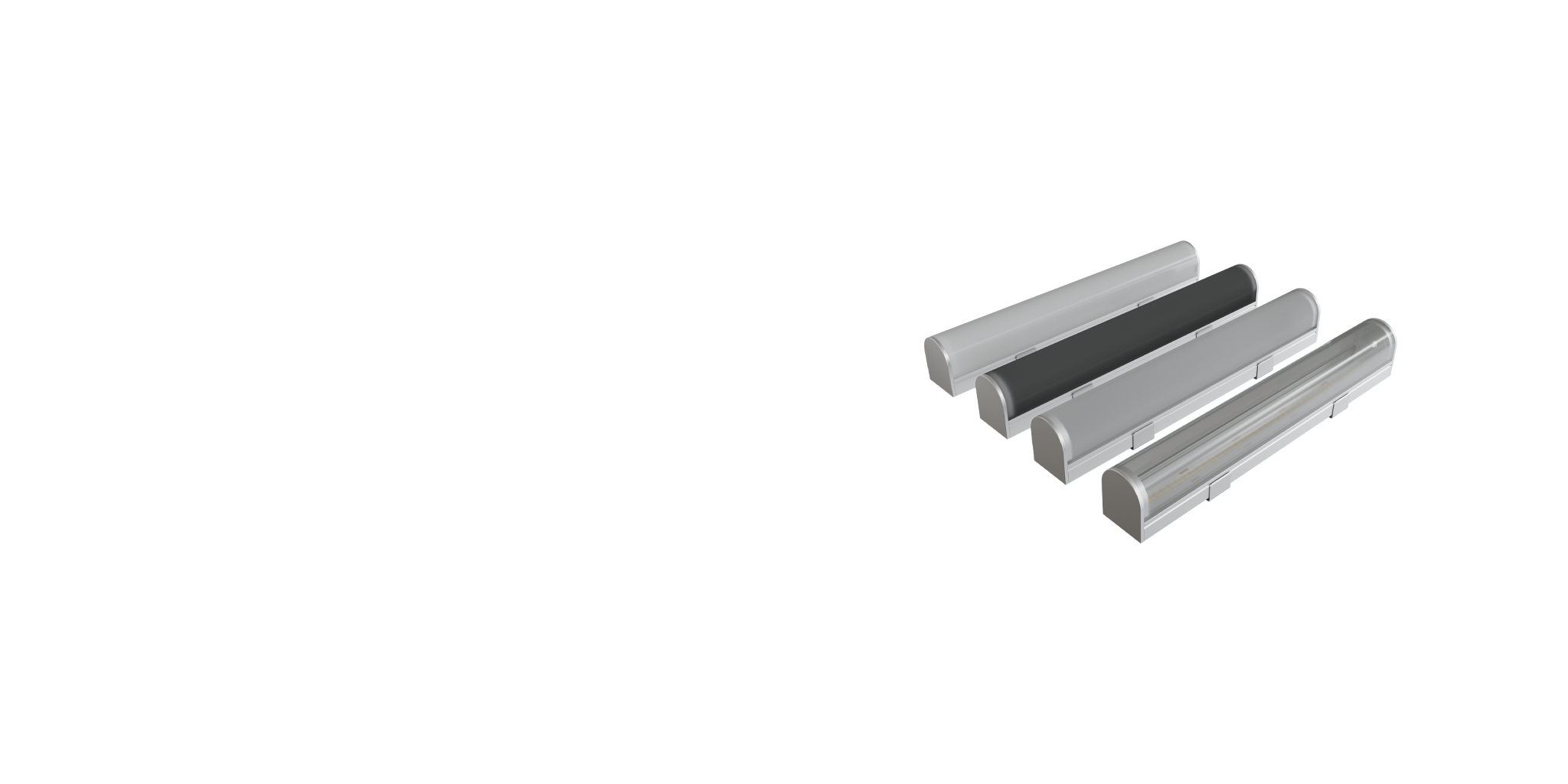

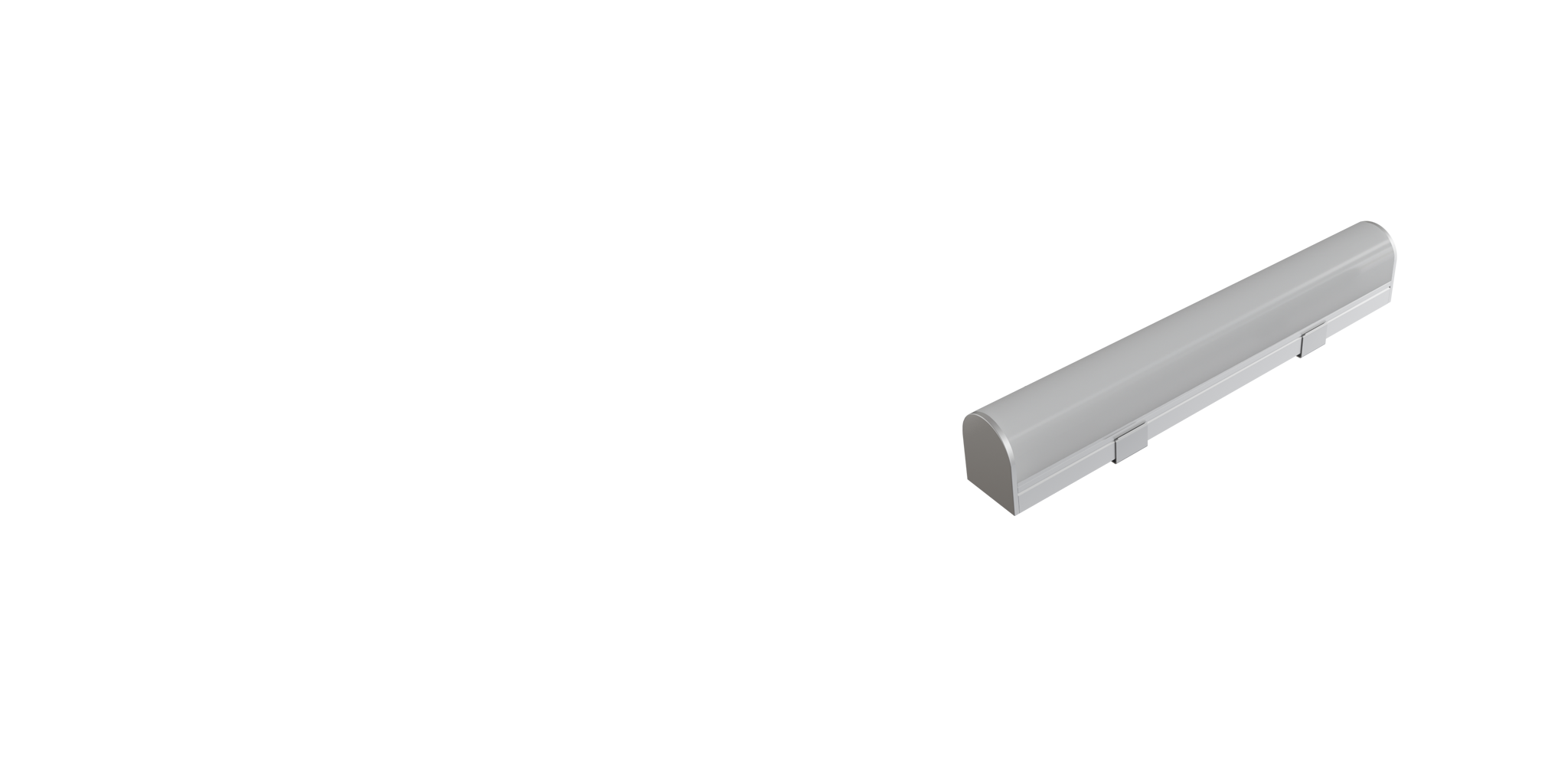

AS22 channel is an aluminum surface mounted extrusion. It features a raised round lens with a 100° beam angle and holds RibbonLyte with a maximum width of up to 0.87 in. (22 mm). Create a custom fixture with AS22, RibbonLyte and your choice of clear, frosted, milky or black lenses.
Features
Wattage Range: 0.75 W/ft (2.46 W/m) to 8.8 W/ft (28.86 W/m)
Static White delivered lumen range:
48.51 lm/ft (159.39 lm/m) to 728.64 lm/ft (2390.16 lm/m)
Clear, Frosted, Milky or Black lens
Magnetic mounting option available
TM66 assessed (see downloads for more info)
Width: 1.03 in. (26.2 mm)
Height: 1.3 in. (32.9 mm)
Internal Width: 0.87 in. (22.2 mm)
Beam Angle: 100°
Interior / Exterior: Interior
Lens
