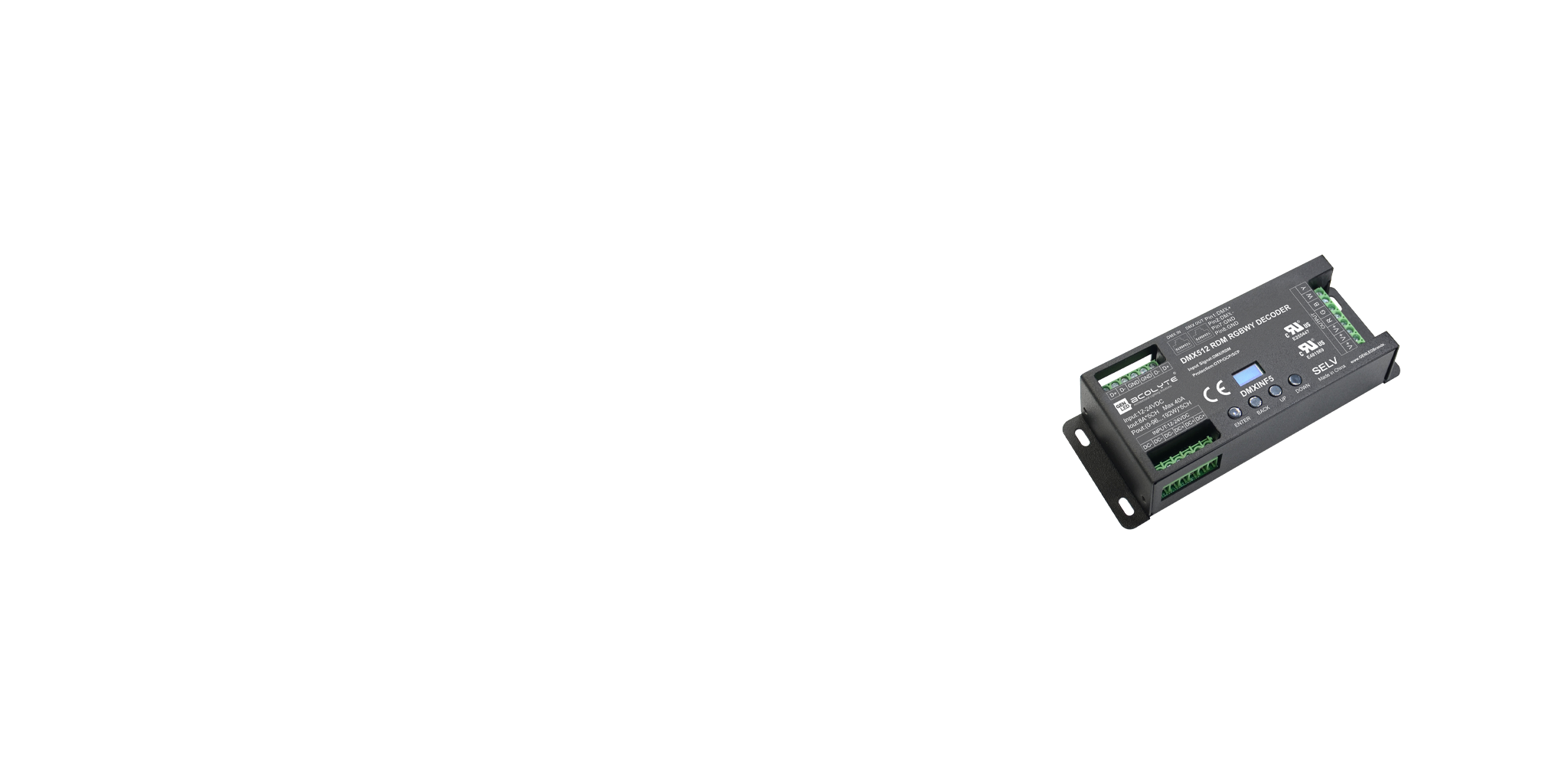

The 5 Channel DMX Decoder is used with DMX controllers to seamlessly operate color changing fixtures. Control multiple Static White or Static Color, Variable White, RGBW, RGBA and RGBWW fixtures. Save 27 built-in scenes and easily adjust speed and brightness. Choose from 8-bit or 16-bit color control. Test Mode allows manual testing — check specific color levels for troubleshooting without a controller. The 5 Channel DMX Decoder can be remotely programmed to set DMX addresses, modes and configurations or monitor sensors, usage and status messages.
Features
12-24 VDC power
8 A/channel output x 5 channels (up to 960 W)
2 DMX connection types: wire terminals and RJ45 (Ethernet)
Crystal-clear OLED display screen
4 touch buttons
8-bit resolution (master mode support); 16-bit optional
RDM (remote) capable programming
Control multiple fixtures
27 built-in scenes (adjust speed, brightness)
Adjust dimming and CCT
Control RGB, RGBW, RGBA or RGBWW
Linear/logarithmic dimming curve
Short circuit, overload, overtemperature protections
Daisy chain up to 32 interfaces (control up to 160 interfaces with signal amplifiers)
Self-testing function
Meets DMX512/1990, RDM/2009 protocols
Requires DMX terminator at end of chain (when recoil effect occurs, over long distances)
Function: Simplify programming for DMX functions
For use with: DMX controllers
