AS23

AS23
AS23

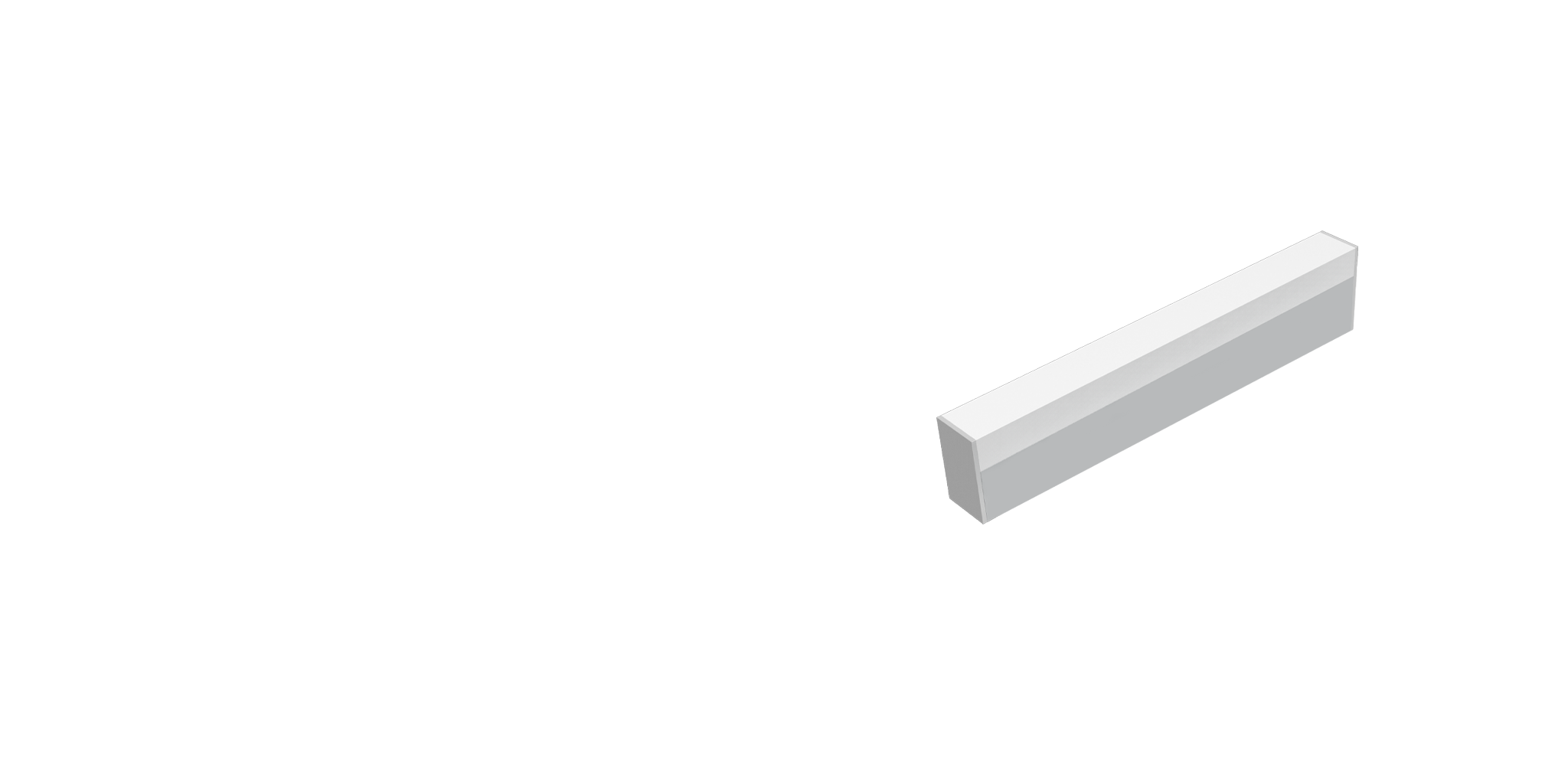

AS23 is a surface mounted channel that offers a continuous line of light with 7 illuminated coupler options for angled runs. With a clear, black or milky flat lens, or a milky square lens, AS23 offers a 100-degree beam angle and holds LED strips with a maximum width of up to .79 in. (20 mm).

Features

Wattage range: 0.75 W/ft (2.46 W/m) to 8.8 W/ft (28.9 W/m)
Static White delivered lumen range: 44.1 lm/ft (144.7 lm/m) up to 736.6 lm/ft (2416.7 lm/m)
7 angled coupler options

Width: 0.91 in. (23 mm)

Internal Width: 0.83 in. (21 mm)

Interior / Exterior: Interior, Exterior

QuickShipLensBeam AnglesHeight
Clear, Milky, Black 101 .99 in. (25.1 mm)
Square Milky 101 1.59 in. (40.5 mm)

Couplers

120°
135°
180°
270° Bent
60°
90°
90° Bent

Lens

Black
Clear
Milky
Square Milky
