Controllers

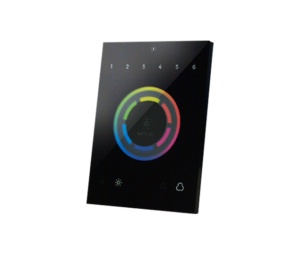

5-15 VDC input
8 USB dry contact ports
Adjust color, brightness, saturation
Control 36 preset scenes
Programmable
Touch capacitive
2 universes of 512 DMX channels

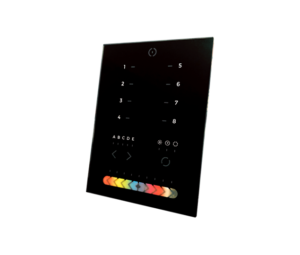

5-6 VDC input
Adjust color, brightness, saturation
Control 200 preset scenes
SD card storage
Programmable
Touch capacitive
2 universes of 512 DMX channels

5-6 VDC input
Adjust color, brightness, speed
Control 500 preset scenes
SD card storage
Programmable
Touch capacitive
2 universes of 512 DMX channels

Control RGBW, RGBA and RGBWW
4 zones / 4 scenes
12-24 V DC input
1 universe / 512 DMX channels
DMX512 output protocol
(Bluetooth 5.0 optional)
Touch color circle & slider bar
Adjust speed and brightness

Control Variable White fixtures
4 zones / 4 scenes
12-24 V DC input
1 universe / 512 DMX channels
DMX512 output protocol
(Bluetooth 5.0 optional)
CCT shortcut buttons
and control circle
Brightness slider bar

Wall-mounted touch screen
Use with 2 Universe DMX Controller
or 6 Universe DMX Controller
WiFi & Ethernet connectivity
3 built-in applications:
Copy lighting controls to smartphone
Create custom controls
Add timeline programming

Control up to 3,072 channels
20 zones and 2,000 scenes
26 mb internal memory
or Micro SD card
8 ports
Clock/calendar triggers
Program with
PC/Mac or iOS/Android

Control up to 1,024 channels
20 zones, 2,000 scenes
16 mb internal memory
or Micro SD card
8 ports
Control with iOS/Android apps
Program with PC/Mac
or iOS/Android

Pixel programming
Choose 1, 2, 4 or 8 universes
Control up to 4,096 channels
Supports 54 SPI protocols
Built-in trigger interface for
automated applications
Lifetime software license
automatically updates features

Pixel programming
Control up to 24 universes
Control up to 12,288 channels
8 bit or 16 bit dimming
Daisy chain controllers
for larger projects
Supports more than
50 SPI protocols

Pixel programming
16 output ports
Control up to 49,152 channels
Daisy chain controllers
for larger projects
Supports 60+ SPI protocols
Fits easily in 19 in. rack mount
Lifetime software license
allows protocol updates

4 transceivers + 1 transmitter
Extend controller range
Transmit and receive data
SPI or DMX conversions
Boost SPI to 820 ft (250 m)
Boost DMX to 1640 ft (500 m)

Powers signal for
C4 Extended or C4 Live controls
Works with PxLNet Transceivers
Data only SPI or 4xDMX out
RJ45 bus or solder pads
for input/output signals
Overvoltage, reverse polarity protections

Boosts signal range
in pixel products
Connect up to 8 universes
3 connection options
Transmit and receive mode
SPI or DMX conversion
SPI up to 820 ft (250 m)
DMX up to 1640 ft (500 m)

Dimming for Variable White
Wall switch
Wireless signal
Flicker-free dimming
down to 0.1%
SmartAir App and voice control
Complies with Title 24
dimming requirements

Dimming for Warm Dim
Wall switch
Wireless signal
Flicker-free dimming
down to 0.1%
Programmable dimming curve
SmartAir app and voice control
Complies with Title 24
dimming requirements

3-in-1 module for dimming
Variable White, Warm-Dim applications
Control multiple modules
SmartAir app and voice control
Use with Constant Voltage
LED drivers
Current limit overload protection
Complies with Title 24
dimming requirements

0-10V Constant Voltage driver
Compatible with
0-10V dimming systems
Use for Variable White,
Warm Dim or Static White
Title 24 Section JA8
Flicker-free dimming to 0.1%
UL Listed Class 2 driver

RGBWW Interface with RF Remote
12-24V DC power
Synchronize controllers
10 dynamic modes
Saves 2 scenes
0-100% flicker-free dimming

3 DMX connection types
OLED display screen
Adjustable PWM frequency
RDM capable programming
12-24V DC power
6 A/channel output x 5 channels
Test mode troubleshooting
without a controller

12-36 V input
4 channels
5A max. per channel
20A max. output
LCD display
2.88″ x 7.09″ x 1.53″
73 x 180 x 39 mm

Set DMX address freely
IP67 rating for outdoor use
Switchable Master/Decoder
Output for DC100-240V
3 Channel LED strip
2.9″ x 5.93″ x 1.38″
73.6 x 150.5 x 35 mm

12/24 VDC input
DMX in/out
8 DMX outputs
Control 8 DMX fixtures
4.33″ x 8.5″ x .82″
110 x 216 x 21 mm
